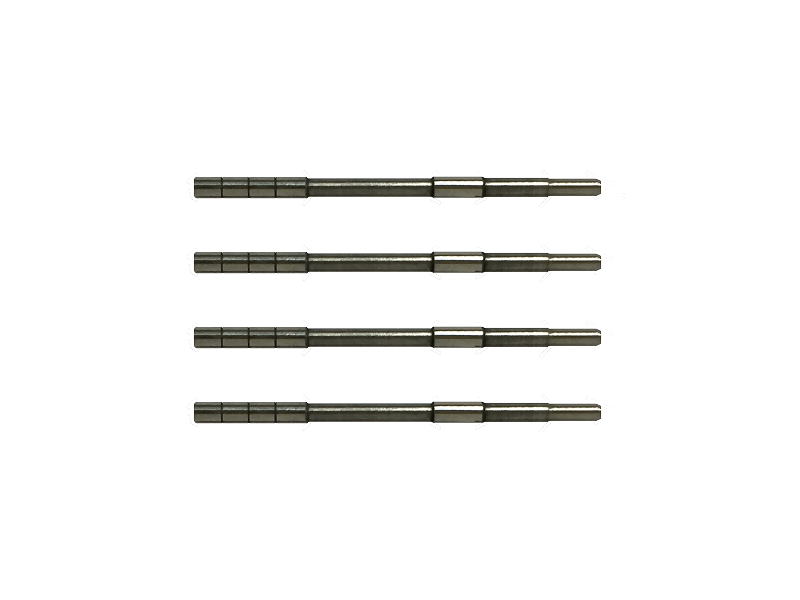

Control Rod
Detail
NO | Suit for Injector | Length（mm） | Diemater（mm） |
CR001 | 095000-6376 095000-8090 095000-8901 095000-8903 095000-8933 095000-5004 095000-5471 095000-6374 095000-5344 095000-6364 095000-527# 095000-5014 095000-5432 095000-6373 095000-890# | 52.70 | 4.3 |
CR002 | 095000-6980 | 56.30 | 4.3 |
CR003 | 095000-5450 095000-6311 | 57.30 | 4.3 |
CR004 | 095000-1213 | 60.65 | 5.0 |
CR005 | 095000-6126 | 61.26 | 3.8 |
CR006 | 095000-6353 095000-6593 095000-6592 095000-6583 095000-6531 | 63.50 | 4.3 |
CR007 | 095000-0812 | 64.72 | 4.3 |
CR008 | 095000-6500 095000-7140 | 65.00 | 4.3 |
CR009 | 095000-1212 095000-0562 | 66.50 | 5.0 |
CR010 | 095000-6120 | 66.53 | 4.3 |
CR011 | 095000-6500 095000-6490 | 66.70 | 4.3 |
CR012 | 095000-5214 095000-5215 095000-5424 095000-6631 095000-5212 095000-6632 | 67.30 | 4.3 |
CR013 | 095000-6633 095000-6845 | 68.45 | 4.3 |
CR014 | 095000-7100 | 71.00 | 4.3 |
CR015 | 095000-7200 | 72.00 | 4.3 |
CR016 | 095000-5550 095000-7210 095000-8310 | 72.10 | 4.3 |
CR017 | 095000-6222 095000-6223 095000-6693 095000-6701 095000-5941 | 76.90 | 4.3 |
CR018 | 095000-8011 095000-775# 095000-4011 095000-6700 | 77.50 | 4.3 |
CR019 | 095000-1215 | 78.00 | 5.0 |
CR020 | 095000-5190 095000-1460 095000-5230 | 79.20 | 4.3 |
CR021 | 095000-1214 | 79.33 | 4.3 |
CR022 | 095000-8322 | 83.21 | 4.3 |
CR023 | 095000-5512 095000-5513 095000-5516 095000-5511 095000-4152 | 84.95 | 4.3 |
CR024 | 095000-1211 | 87.30 | 5.0 |
CR025 | 095000-8100 | 90.40 | 4.3 |
CR026 | 095000-5224 095000-5225 095000-5226 095000-5480 095000-5223 | 92.70 | 4.3 |
CR027 | 095000-6640 095000-6070 | 93.50 | 4.3 |
CR028 | 095000-5870 | 109.60 | 4.3 |
CR029 | 095000-6790 095000-6791 095000-9550 | 113.00 | 4.3 |
CR030 | G3 | 117.40 | 3.8 |
CR031 | 095000-5525 095000-5921 095000-5800 23670-0L020 23670-0L090 | 117.70 | 4.3 |
CR032 | 095000-5600 | 118.40 | 4.3 |
CR033 | 095000-5801 | 125.85 | 4.3 |
All names, numbers, symbols and descriptions are for reference purposes only, and do not imply that any part is the product of these manufacturers.
